當 React web app 遇上 Progressive web app


Posted by ArvinH on 2016-09-17

先前介紹過 Progressive Web App,我們利用 vanilla js 與 css 刻出一個支援 PWA 的天氣 web app,
但現在應該很少人這麼有風格的用純 JS 寫 web app,世俗如我還是會想用 React 來支援前端框架,但 React 的 configuration 就已經頗複雜,要再加上 service-worker 的設定,想想就覺得累。

好在 facebook 先前推出 create-react-app 這個工具,幫你預先設定好一些 config,並且隱藏起來(還是想要自己設定的話,可以透過 npm run eject 這個指令),如果是中小型專案應該很適合。

因此,問題就剩下加上 service worker 這段了。

幸運的是,Google chrome 的開發成員有一個 open source 的 repository - create-react-pwa,是基於 create-react-app 的架構去支援 PWA。

不過實際上我使用起來還是有些地方需要微調與注意的,所以今天就是來帶著大家一步一步把你從 create-react-app 中所創建的 React Web App 加入 PWA 的支援。

Add PWA support in your create-react-app

以防大家沒用過 create-react-app,這邊稍稍介紹一下。首先你要先透過 create-react-app 來產生你的 web app:

npm install -g create-react-app

create-react-app react-pwa-boilerplate

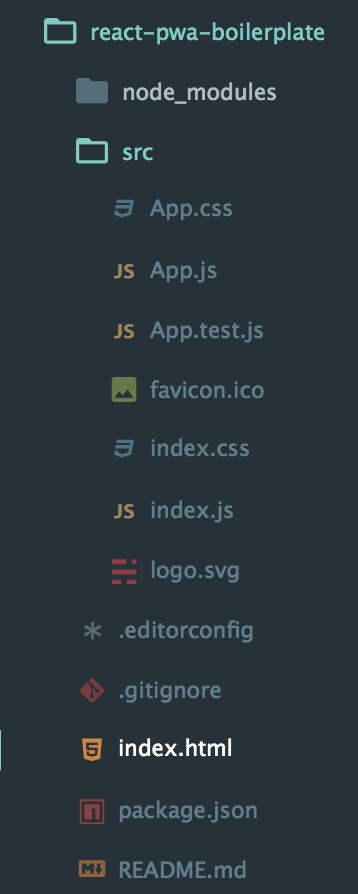

接著就會產生以下結構的資料夾:

create-react-app-structure

當然 src 內的結構你可以依照你自己需求調整。

接著 npm start 即可在 localhost:3000 看到頁面了。

而在有了一個 react web app 的雛形後,我們就可以來加上 PWA 的支援了!

Step I - sw-precache

要能夠擁有 Progressive Web App 的能力,需要 Service Worker 的幫助,除了自己撰寫 service-worker 以外,我們可以利用 Google 出的 sw-precache 來幫我們產生需要的 service-worker.js

package.json 中的 devDependencies 加入 sw-precache
```js package.json
"devDependencies": {
"react-scripts": "0.4.1",
"sw-precache": "^4.0.0"
},

or `npm install sw-precache --save`

接著,在 `package.json` 中的 `script` 內,我們要修改一下 `build` 的指令:

```js package.json
"scripts": {
  "build": "react-scripts build && cp manifest.json favicon.ico build/ && sw-precache --navigate-fallback='index.html' --root='build/' --static-file-globs='build/**/!(*map*)'",
}

這個指令做了幾件事情:

  1. react-scripts build 是原本 create-react-app 的指令,將相關的 react component 等等透過 webpack 幫你編譯轉譯後放到 build folder 底下。

  2. cp manifest.json favicon.ico build/ : manifest.json 與 favicon.ico 都是 PWA 需要的東西,待會會在說明內容。因為原本的 react-scripts build 中並不會產生這樣的東西,自然也不會幫你 build 進去,但我們需要讓 service worker 能儲存它們,所以這邊就手動把他放入 build 底下。

  3. sw-precache --navigate-fallback='index.html' --root='build/' --static-file-globs='build/**/!(*map*)'

這個指令透過 sw-precache,產生一個 service-worker.js 的檔案,他會自動幫你把 build folder 底下的 static 檔案都暫存起來!

--navigate-fallback='index.html' 這個 flag 是為了讓你使用 React Router 而放入的。如果你是根據 facebooke 的 doc 加入 react-router,並且 deploy 到 github page,那你必須加入這個 flag,這樣一來,當 user 在切換動作而改變 url 時,任何的 random url 都會 fallback 到 index.html,其實也就是你 single page 的那個 entry 點,service-worker 才能夠找得到 cache。

--static-file-globs:這個 flag 讓 sw-precache 存 source map 外的所有 static files。

Step II - manifest.json

再來是 PWA 中很重要的 manifest.json,能不能順利在 mobile 上 Add to homescreen 就要靠這份檔案:

```js manifest.json
{
"short_name": "react-pwa-boilerplate",
"name": "react-pwa-boilerplate",
"icons": [
{
"src": "favicon.ico",
"sizes": "144x144",
"type": "image/png"
}
],
"start_url": "./",
"display": "standalone"
}


要注意的是,這邊的 icons,size 一定要給正確的值,否則會造成 manifest 的解析錯誤,另外,如果要能讓 iOS 內的 safari 也能夠跑,需要有額外的設定,待會還會提及,也可以先參考之前的 [文章](blog.arvinh.info/2016/07/18/progressive-web-app/)

### Step III - index.html

上述設定都做完後,要將 `manifest.json` 放入 `index.html` 內,並註冊 `service-worker.js`。

```html index.html
<!doctype html>
<html lang="en">
  <head>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <link rel="shortcut icon" href="./src/favicon.ico">
    <!-- manifest 加入這邊~ -->
    <link rel="manifest" href="manifest.json">
    <title>React App</title>
  </head>
  <body>
    <div id="root"></div>
    <!-- service worker 在這邊註冊~ -->
    <script>
        if ('serviceWorker' in navigator) {
            navigator.serviceWorker.register('service-worker.js').catch(function(ex) {
                console.warn(ex);
                console.warn('(This warning can be safely ignored outside of the production build.)');
            });
        }
    </script>
  </body>
</html>

Step IV - Deploy to github page

搭配 github page 可以快速將你的 web app 部署上去,create-react-app 在你執行完 build 以後,提供了 deploy to github 的指令,我們可以把它先加入 package.json 當中。另外也一並加入 homepage 的欄位。

```js package.json
"scripts": {
"deploy": "git commit -am \"Save local changes\"; git checkout -B gh-pages; git add -f build; git commit -am \"Rebuild website\"; git filter-branch -f --prune-empty --subdirectory-filter build; git push -f origin gh-pages; git checkout -",
"start": "react-scripts start",
"build": "react-scripts build && cp manifest.json favicon.ico build/ && sw-precache --navigate-fallback='index.html' --root='build/' --static-file-globs='build/*/!(map*)'",
"test": "react-scripts test --env=jsdom",
"eject": "react-scripts eject"
},
"homepage": "https://blog.arvinh.info/react-pwa-boilerplate"


### Step V - build & deploy & run and ... debug?!

如果你一步一步跟著做到這裡,理論上就可以 `npm run build` 來 build 看看,接著再 `npm run deploy` 來部署到 github page 上。

不過當你執行完,console 也沒有噴任何 error,將你的 web app 用手機開啟並加入主畫面後,重新開啟還是一樣進入瀏覽器的畫面?!

#### manifest path error

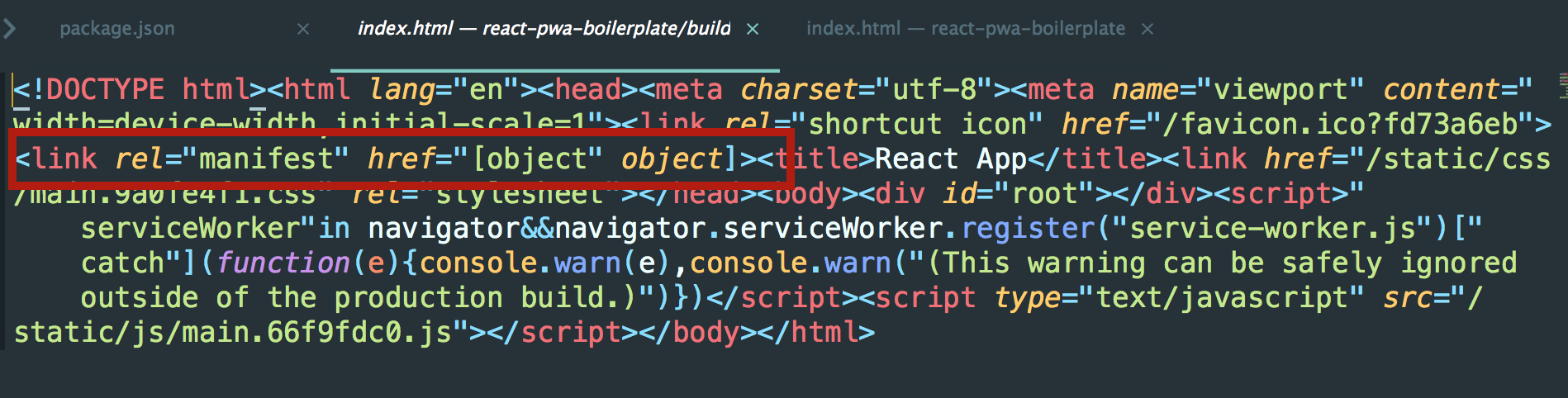

仔細檢查一下瀏覽器 error 會發現在我們 build 出來的 index.html 內,manifest.json 的路徑被 parse 錯誤了!

![manifest error](https://static.coderbridge.com/img/techbridge/images/arvinh/manifestError.png)

這其實是因為目前 `create-react-app` 內部的 webpack loader 的 issue,在這個 [issue](https://github.com/jeffposnick/create-react-pwa/issues/3) 裡面有提到,目前我的解法是:

1. 將一開始的 index.html 修改為 `<link rel="manifest" href="/manifest.json">`
2. build 完以後,到 build/index.html 內將其修正為 `<link rel="manifest" href="./manifest.json">`

除了上面這個錯誤以外,以上步驟還少了一些東西。

#### iOS support

如果你想要你的 web app 能夠在 iOS 上的 safari 運作,在 index.html 中還得要加入以下幾行:
```html index.html
<!-- Add to home screen for Safari on iOS -->
    <meta name="apple-mobile-web-app-capable" content="yes">
    <meta name="apple-mobile-web-app-status-bar-style" content="black">
    <meta name="apple-mobile-web-app-title" content="React-PWA">
    <link rel="apple-touch-icon" href="./src/images/favicon-144x144.png">

其中的 icon 路徑記得要填寫正確,也一樣要確認好 image 的 size。

Cache polyfill

現在 service worker 的支援度還很低,有些 polyfill 可能需要加一下,但我還不確定到底需要哪些...

這個 Cache polyfill 用來增加 Cache api 的支援:

https://github.com/dominiccooney/cache-polyfill

修改你 pacakage.json 中的 build script,加上:

```js pacakage.json
"build": "react-scripts build && cp manifest.json cache-polyfill.js favicon.ico build/ && sw-precache --navigate-fallback='index.html' --root='build/' --static-file-globs='build/*/!(map*)'",


並在你 build folder 內的 service-worker.js 內加上:

`importScripts('cache-polyfill.js');`


#### Run

修正完上述錯誤後,執行 `npm run deploy`,應該就會自動幫你把 build folder 底下的內容部署到 gh-pages 這個 branch 上,你就能在 https://[your_github_acount].github.io/[project_name]/ 看到你的 web app。

試著加入主畫面看看,如果沒問題的話,當你再次從主畫面點選 icon 開啟時,應該就可以看到你的網站像 app 一般的呈現在手機上了!

你可以先從 chrome devtool 確認 service worker 的運作情況,打開在 devtool 中的 **Application tab** (以前叫做 resources tab)

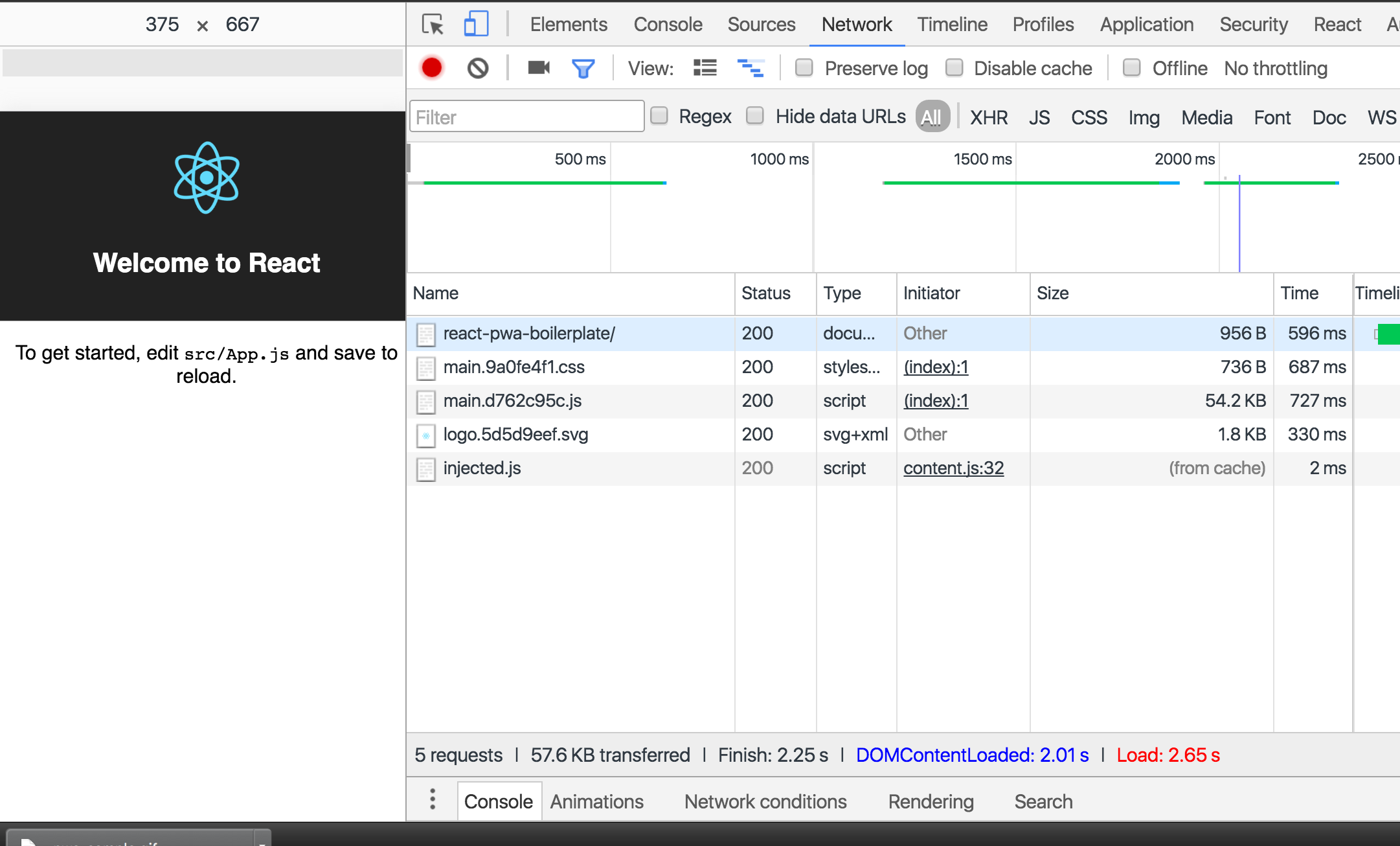

online:
![pwa-network](https://static.coderbridge.com/img/techbridge/images/arvinh/pwa-network.png)

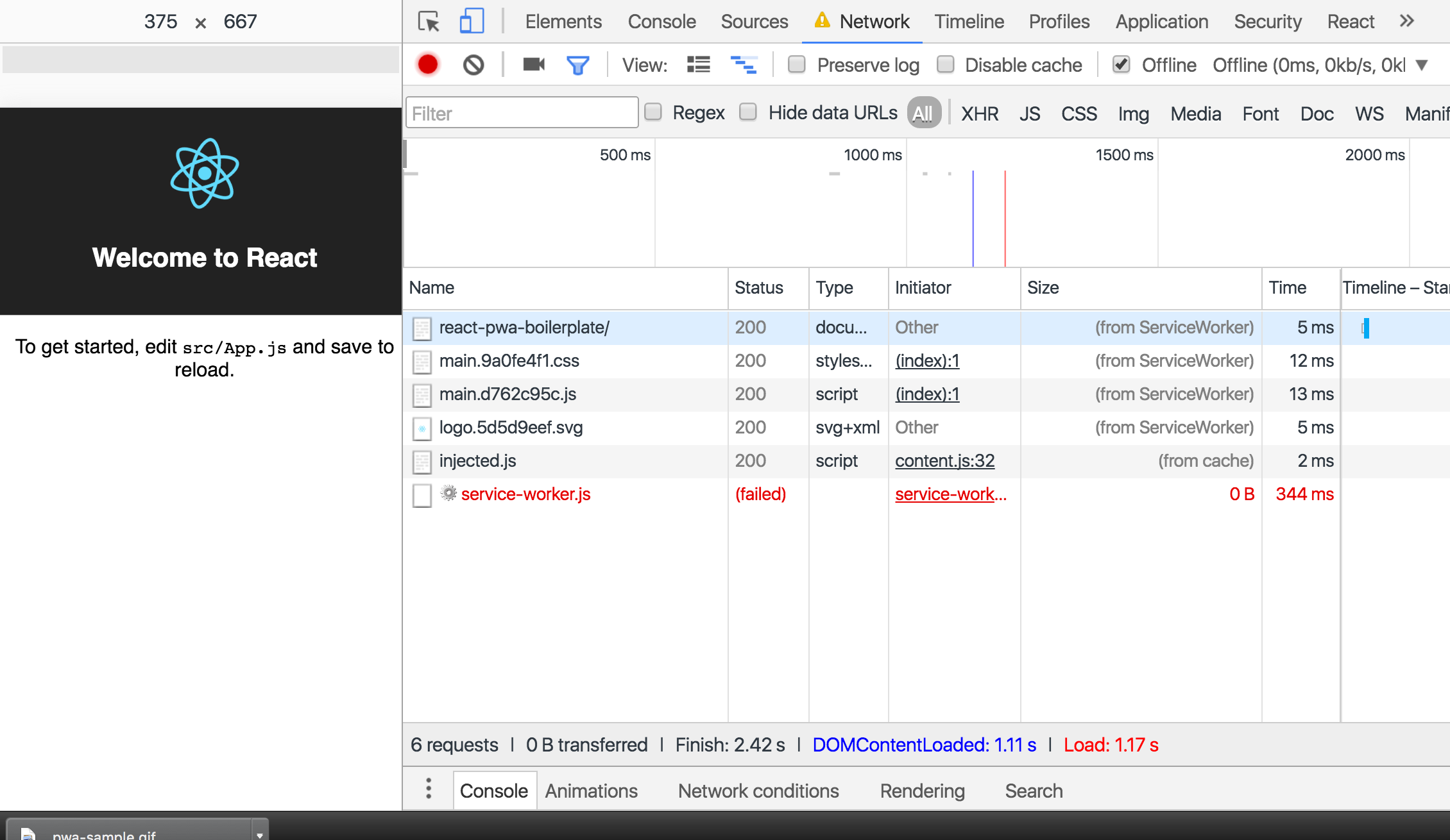

offline:
![pwa-nonetwork](https://static.coderbridge.com/img/techbridge/images/arvinh/pwa-nonetwork.png)

可以看到 resource 在 offline 時是從 service worker 來。

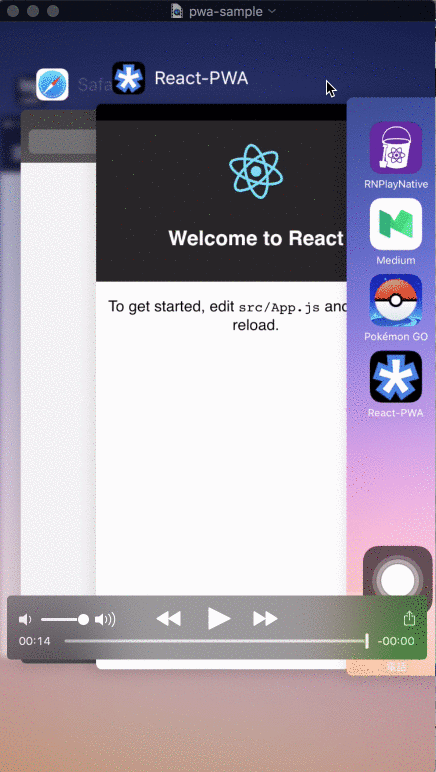

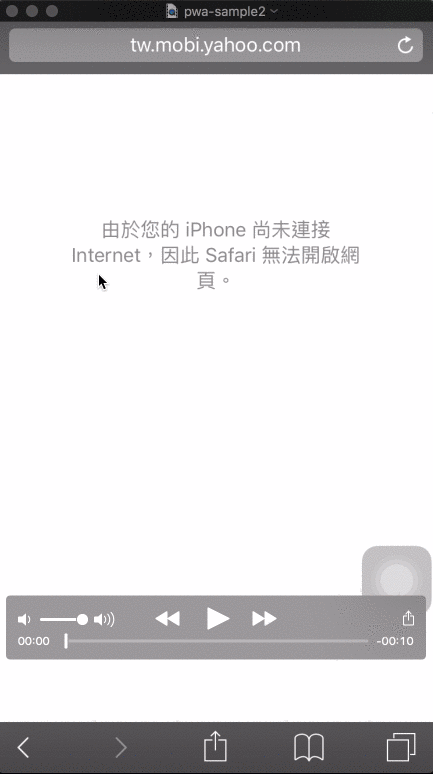

手機上的狀況像是:

<img src="https://static.coderbridge.com/img/techbridge/images/arvinh/pwa-sample.gif" alt="pwa-sample" style="width: 200px;">

<img src="https://static.coderbridge.com/img/techbridge/images/arvinh/pwa-sample2.gif" alt="pwa-sample2" style="width: 200px;">

### 補充說明

這篇文章講述到的 PWA support 實際上只能讓你的 web app 能跳脫瀏覽器,運作起來像個 Native App,但是並沒有考量其他實作 PWA 時需要注意的細節,像是 PWA 內的 App shell 等等。

另外,你的 web app 一定不可能只有 static files,勢必會需要有跟 API 溝通的部分,這邊就需要額外使用 [sw-toolbox](https://github.com/GoogleChrome/sw-toolbox) 來負責 runtime caching strategies,你也可以透過 sw-precache 的設定檔來處理:
```js precache-config.json
{
dynamicUrlToDependencies: {
  dynamic/page1: [
    "app/views/layout.jade",
    "app/views/page1.jade"
  ],
  dynamic/page2: [
    "app/views/layout.jade",
    "app/views/page2.jade"
  ]
  },
  staticFileGlobs: [
    "app/css/**.css",
    "app/**.html",
    "app/images/**.*",
    "app/js/**.js"
  ],
  stripPrefix: "app/",
  verbose: true,
  runtimeCaching: [
    {
      urlPattern: "/this\.is\.a\.regex/",
      handler: "networkFirst"
    }
  ]
}

只要在 sw-precache 的指令後加上 --config=sw-precache-config.json 這個 flag 來指定 config 檔即可。

程式碼

上述完整程式碼可以在這裡取得:
https://github.com/ArvinH/react-pwa-boilerplate

測試頁面:https://blog.arvinh.info/react-pwa-boilerplate/

目前測試似乎 offline 會有問題,會持續修正更新!並加入 react-router、redux 等常用 lib。

工商服務時間

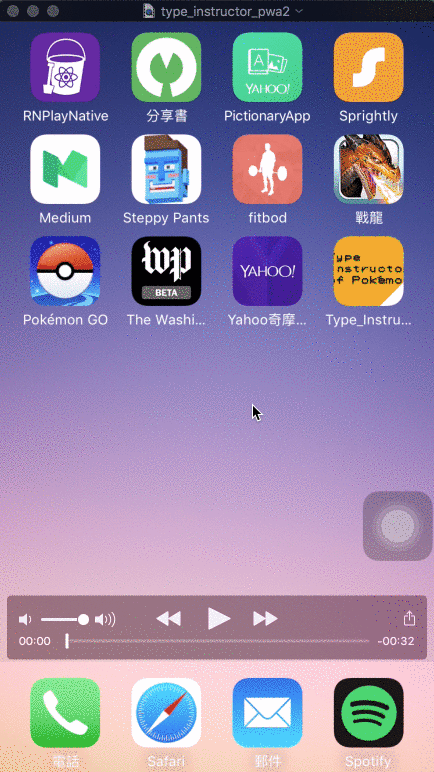

前陣子強者我朋友寫了一個神奇寶貝屬性對戰的遊戲,可以幫助你瞭解神奇寶貝之間各種屬性的相剋狀況,剛好是使用 create-react-appRedux 實作,我也加入了 pwa 的版本,只是目前 offline 似乎有點問題...

歡迎大家幫忙修~

大家可以先到原本網站玩玩!

原版:
https://kaddopur.github.io/type_instructor/

PWA:
https://blog.arvinh.info/type_instructor/#/?_k=usu9f3

type_instructor
