ecto 簡介 (2) – tendrils 與 scheduler


前言

上次的文章介紹了 ecto 的基本機制 – cell 與 plasm,讓大家對於這個函式庫的基本功能有了一個認識,但你可能會感到疑惑,如果只是可以用來建立一個如 DAG 方式來執行的 pipeline ,寫在 main 函式裡不就好了,何苦使用 ecto,還得把一個 class 寫成一個又臭又長的 cell。這篇文章就會帶出 tendril 和 scheduler 的機制,讓大家了解到事情並不像我們想得那麼簡單。

tendril 是什麼 & tendril 好用在哪裡

tendril 這個 object 就是 cell 最基本的溝通媒介,舉凡 cell 的輸入、輸出以及 parameter 的傳遞都會使用到 tendril 。在上一篇我們也可以看到,cell 的函式定義裡面,都是使用 tendril 這個型態來傳遞參數。

1
2
3
4
5
6
7
8
9
10
11
12
13
struct Example01
{
static void declare_params(tendrils& p)
{
p.declare<int>("value", "Some integer");
}

void configure(const tendrils& p, const tendrils& i, const tendrils& o)
{
int n = p.get<int>("value");
std::cout << "Value of n is " << n << "\n";
}
};

使用起來只要寫一小段 Python Script 就好:

1
2
3
4
5
6
7
#!/usr/bin/python

import ecto
from ecto.ecto_examples import Example01

ecell = Example01(value=17)
ecell.process()

那統一寫成 tendril 的好處是什麼呢? 統一的好處很直觀,就是很容易被廣泛地使用,舉例來說,如果我們今天要寫一個 scheduler 來控制整個 plasm 的排程,那每個 cell 的參數、輸入和輸出都統一用 tendril 在實作上會比較簡單。舉個例子,cell 的 process(const tendrils&, const tendrils&)就一定是固定有兩個 const 的 tendrils 類型的引數,不會被使用者任意自訂。

這邊還有另一個容易讓人搞混的地方,就是 tendril 跟 tendrils 的差異,這兩個東西是不一樣的,tendrils 可以想成是一個裝著 tendril 的容器,可以給 tendril 的名字,這個名字會被當作一個 key (型態自然就是 string),用來對應到 tendril 的物件。

Scheduler 是什麼

Scheduler 是幫忙控制 plasm 執行的工具,比較酷的是 ecto.MultiPlasmScheduler 這個類別,他可以讓我們輕鬆地平行執行多個 plasm ,例如我們有三個 plasm 要執行,且三個想要執行的頻率不一樣,那使用 MultiPlasmScheduler 可以透過設定 step 的大小來控制頻率。

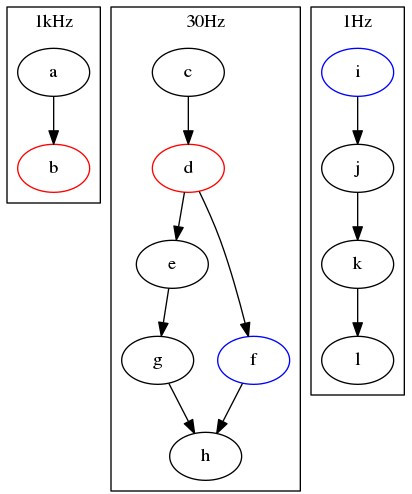

three_plasms

自己如果想實作,那就要跟 multi-threads 奮戰,中間細致的控制滿容易出錯的,如果 thread 一多,debug更是困難。

ecto 可以讓我們從比較上層的角度來控制多個 plasm ,有看到一個 test script 是使用 MultiPlasmScheduler 來執行兩個 thread,跟上面的範例圖不一樣,不過概念是相近的:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
#!/usr/bin/env python
#
# Copyright (c) 2011, Willow Garage, Inc.
# All rights reserved.
#
# Redistribution and use in source and binary forms, with or without
# modification, are permitted provided that the following conditions are met:
# * Redistributions of source code must retain the above copyright
# notice, this list of conditions and the following disclaimer.
# * Redistributions in binary form must reproduce the above copyright
# notice, this list of conditions and the following disclaimer in the
# documentation and/or other materials provided with the distribution.
# * Neither the name of the Willow Garage, Inc. nor the names of its
# contributors may be used to endorse or promote products derived from
# this software without specific prior written permission.
#
# THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
# AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
# IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
# ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE
# LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
# CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
# SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
# INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
# CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
# ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
# POSSIBILITY OF SUCH DAMAGE.
#
import ecto
import ecto.ecto_test as ecto_test
import sys
from ecto.test import test

def build_pipelines():

left_plasm = ecto.Plasm()
right_plasm = ecto.Plasm()
accumulator = ecto_test.Accumulator("Accumulator", connected_inputs_only=True)
left_generator = ecto_test.Generate("Left Generator", step=1.0, start=1.0, stop=10.0)
right_generator = ecto_test.Generate("Right Generator", step=2.0, start=1.0, stop=10.0)
left_plasm.connect(left_generator["out"] >> accumulator["left"])
right_plasm.connect(right_generator["out"] >> accumulator["right"])
plasms = {
"left": left_plasm,
"right": right_plasm
}
scheduler = ecto.MultiPlasmScheduler(plasms, disable_qt_management=True)
return (accumulator, scheduler)


@test
def test_plasm():
(accumulator, scheduler) = build_pipelines()
scheduler.spin()
print( "RESULT: %s" % accumulator.outputs.out)
assert accumulator.outputs.out == 80.0

if __name__ == '__main__':
test_plasm()

但是這一塊的 API 跟教學文章很不完整,要深入了解可能要看撰寫 ecto 的這些高手們怎麼把 ecto 用在 OpenCV、PCL 等開源的電腦視覺函式庫中,之後的文章會更深入探討。

總結

這一篇文章簡單跟大家介紹了 tendril 跟 scheduler 的概念,對於 ecto 的功能及彈性更加有感覺,不過看完這一篇可能還不太知道要怎麼活用 ecto,下一篇會帶大家實際來玩玩這個工具,會更通 ecto 可以做到的事跟實際應用的範例。

延伸閱讀

  1. ecto 官方網頁的 tendril 介紹
  2. ecto 官方網頁的 scheduler 介紹
